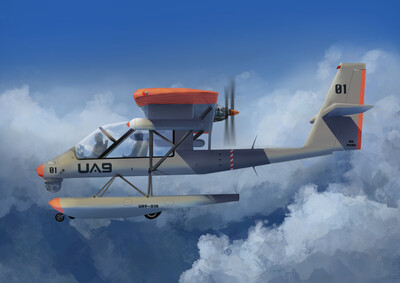

UA9 KEY CAPABILITIES

Low Acquisition & Operating Cost
Twin-Engine Reliability
Exceptional STOL Performance
Low-Speed Patrol & Observation Capability
Up to 6.5 Hours Mission Endurance
Fuel Consumption Below 30 Litres per Hour
Fully Enclosed Cockpit
Advanced Garmin Avionics & Navigation
Advanced EO/IR Surveillance Capability
Day & Night Mission Capability
Simple Maintenance & Field Support
Extended-Range Mission Tank Option

Service Ceiling 15,000 ft (unpressurised)
Wide Operational Speed Envelope
Pilot + Mission Operator Configuration
Rapid Mission Reconfiguration
Land or Amphibious Configuration
Excellent Manoeuvrability & Low-Speed Handling
Automotive Fuel Capability
EO/IR Sensor & Mission-System Integration
Satellite & Specialist Communications Options
Cargo, Medical & Specialist Mission Capability

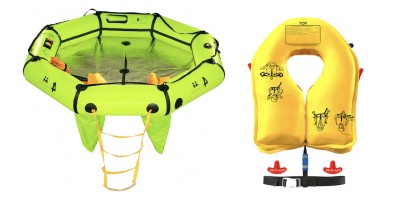

Maritime & Rescue Equipment Deployment Capability

ADVANCED SURVEILLANCE, MISSION SYSTEMS & CONNECTIVITY

The UA9 can be equipped with advanced, fully stabilised EO/IR surveillance systems providing high-definition daylight and thermal imaging capability for both day and night operations.

Integrated mission displays provide the mission operator with real-time imagery and sensor control, supporting surveillance, detection, identification, tracking and evidence gathering directly from the aircraft.

Starlink satellite connectivity provides high-speed airborne communications, enabling the UA9 to remain connected during operations and supporting the transmission of mission data, imagery and operational information to ground-based teams and command centres.

Mission imagery and data can also be recorded for subsequent analysis, reporting and transfer. The UA9’s adaptable mission architecture allows additional communications, navigation and specialist equipment to be integrated according to the customer’s operational requirements.

Different sensor configurations can be offered according to mission, performance and budget requirements, allowing the UA9 to be configured for routine patrol, infrastructure inspection, law enforcement, maritime surveillance, humanitarian support and security operations.

Connected in the air. Connected to the mission.

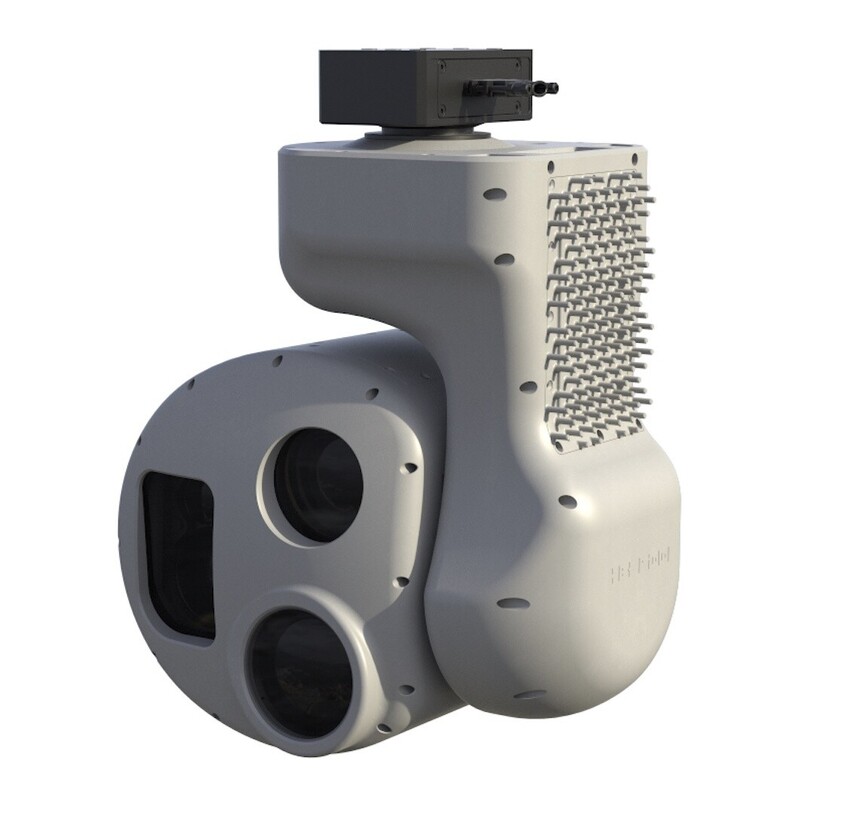

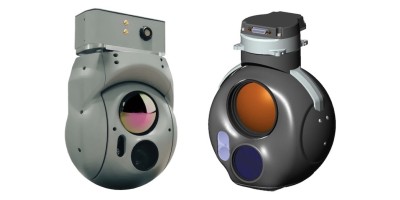

Advanced Stabilised EO/IR Surveillance Systems
High-Definition Daylight & Thermal Imaging
Laser Range Finding & Target Geolocation
Real-Time Detection, Identification & Tracking

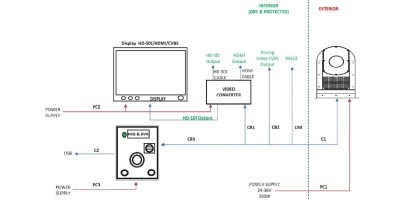

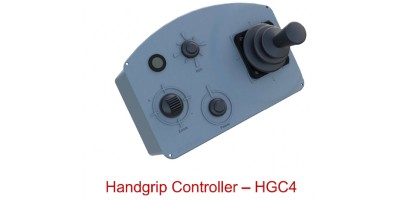

Integrated Mission Operator Displays
Mission Recording & Evidence Capture
Starlink High-Speed Satellite Connectivity
Real-Time Mission Data & Imagery Transmission
Ground Team & Command Centre Connectivity

Advanced Garmin Glass Cockpit & Navigation Suite
Dual-Engine Flight Instrumentation & Monitoring
Integrated Communications & Navigation Systems
GPS Moving-Map Navigation
ADS-B Equipped
Day & Night Operational Capability
Integrated Audio & Warning Systems
Mission-Optimised Cockpit Configuration
LED Exterior & Operational Lighting
Electrical Provision for Mission Systems & Equipment

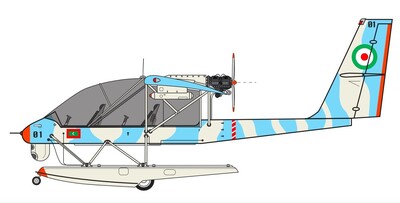

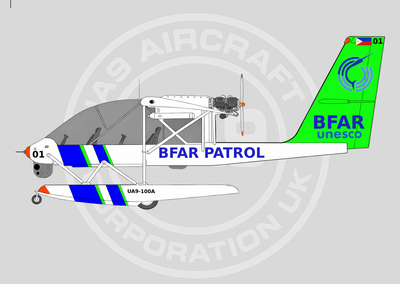

AIRCRAFT SPECIFICATION

HP - 2 x Rotax 912ULS @ 115 HP ea 230 HP (Total)
Gross Weight 1,680 lbs
Empty Weight 1,040 lbs
Useful Load 640 lbs
Stall Speed 39 mph
Top Speed (Vne) 110 mph
Cruise Speed 50 to 100 mph
Vne (never exceed speed) 110 mph
Rate of Climb 1,500 fpm
Rate of Climb Solo, 50% fuel 2,000 fpm
Rate of Climb Single Engine 300 fpm
Fuel Capacity 42 gal
Range 420 mi
Endurance 6.5 Hrs
Landing Roll 300 Ft
Takeoff Roll less than 200 ft
Wings Span 36'
Length 27'
Height (Vert, Stab.) 8'4"
Gear width 8'6"
Configurations Amphibious or fixed landing gear
